Kitchen Cabinet Layout: The Technical Guide for 2026

Cabinet layout is the decision that controls how a kitchen actually works. Countertops, finishes, and appliances get swapped over the life of the room, but the layout of base and wall runs locks in cooking paths, storage, and sight lines for a decade. This guide covers the five standard shapes, the work triangle, cabinet types, small-kitchen optimization, and where an AI tool like the AI Renovation cabinet layout planner shortens the process compared to drafting on graph paper.

The five core kitchen cabinet layouts

Every kitchen layout collapses down to one of five shapes: single-wall, galley, L-shape, U-shape, and island-augmented. The shape you start with depends on the room's footprint and the number of doors and windows interrupting the walls. A kitchen unit designs workspace lets you slot each shape against your real dimensions in minutes, which is the fastest way to rule out the ones that do not fit.

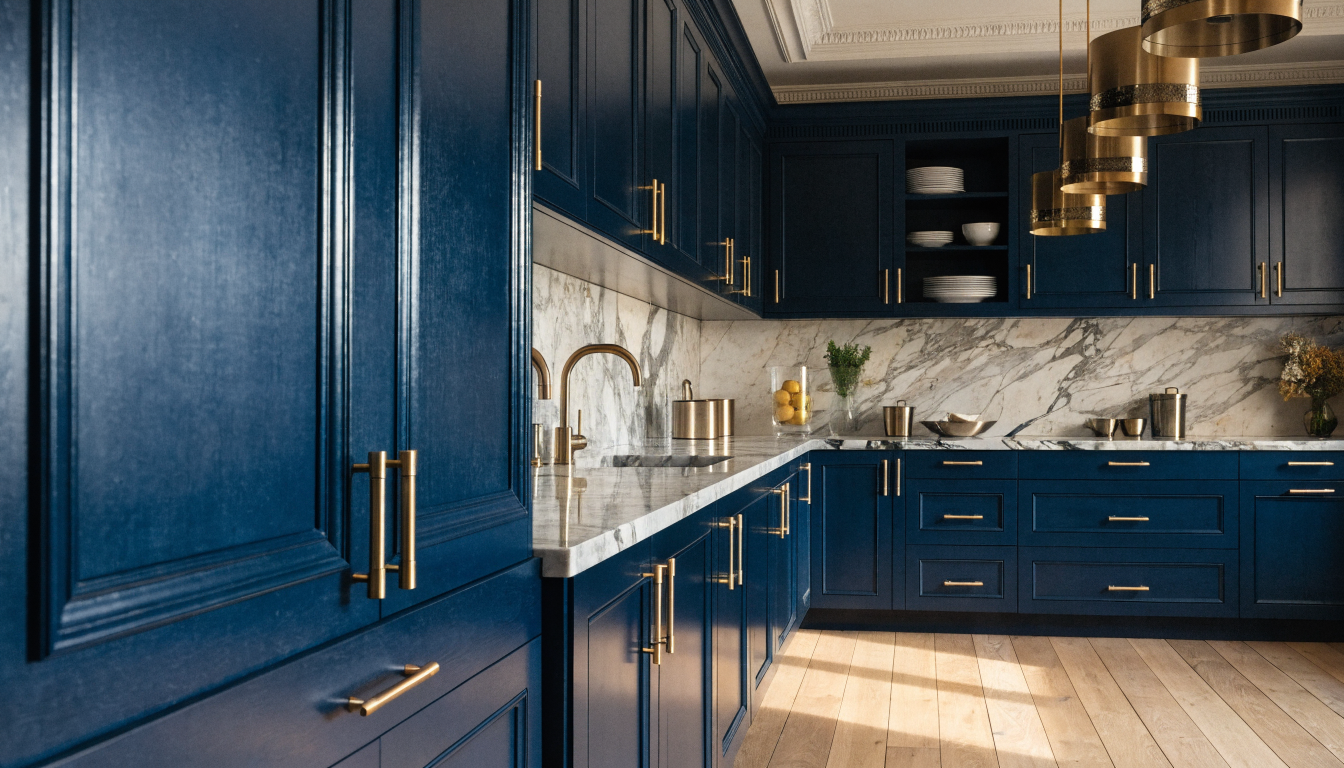

Single-wall layouts push every run along one wall, for rooms under 2.4 metres wide. Galleys run parallel counters with a corridor between them, efficient per square metre but tight under 1.2 metres of clearance. L-shapes wrap a corner and suit open-plan rooms. U-shapes enclose the cook on three sides, with the longest uninterrupted prep run. Island kitchens add a freestanding bench to a single-wall or L base for extra prep surface and a social edge. Comparing each against your footprint inside the free kitchen design visualizer avoids choosing a shape before the room is measured.

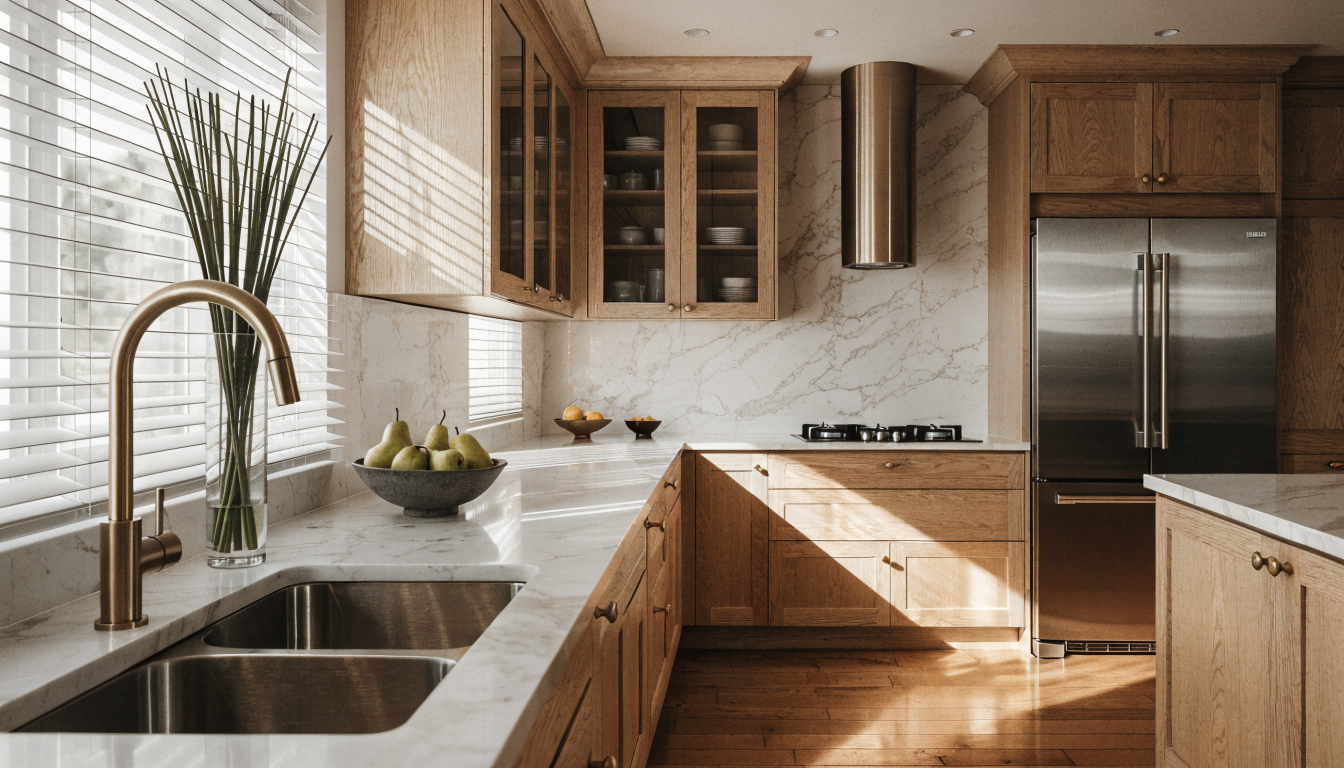

The work triangle, and why it still matters

The work triangle is the classic planning tool: draw a line between sink, cooktop, and refrigerator; the three sides should sum to between 4 and 7.9 metres, with no single side shorter than 1.2 metres. Under that range feels cramped; over it, you spend the session walking. Most online kitchen designer tools draw the triangle automatically once the three appliances are placed.

Modern kitchens complicate the triangle because there are often more than three stations: prep sink, wall oven, microwave drawer, beverage zone. The contemporary approach is to plan by zones (prep, cook, clean, store), grouping cabinets and appliances by activity. Triangle sets the skeleton, zones add the muscle. Running both passes inside a kitchen remodel plan is faster than redrawing and flags when a change breaks either rule.

The cabinet vocabulary: base, wall, tall, corner

Every layout is built from four cabinet families. Knowing stock sizes up front prevents drawing a plan that does not snap to any real product. The design your own kitchen layout tool locks components to manufacturer modules, so output translates directly to a quote.

• Base cabinets. 720 mm tall, 560 to 600 mm deep, widths from 300 to 1200 mm in 50 or 100 mm steps. Finished counter height usually 900 mm. Drawer stacks replace doors in about 60 percent of current plans because drawers recover more usable volume.
• Wall cabinets. 720 to 900 mm tall, 300 to 350 mm deep. Bottom edge sits 500 to 600 mm above the counter. Taking wall cabinets to the ceiling recovers the dust-shelf gap and adds 25 to 30 percent storage without extra footprint.
• Tall cabinets. 2100 to 2400 mm pantry or appliance towers, housing ovens, fridges, or bulk pantry storage. A pair of tall cabinets creates clear visual anchors and lets you zone the room.
• Corner cabinets. The most product-dependent part of any layout. Blind corners waste volume unless you specify a diagonal unit, a bi-fold door, or a rotating carousel. Corners are the biggest source of retrofit regret.

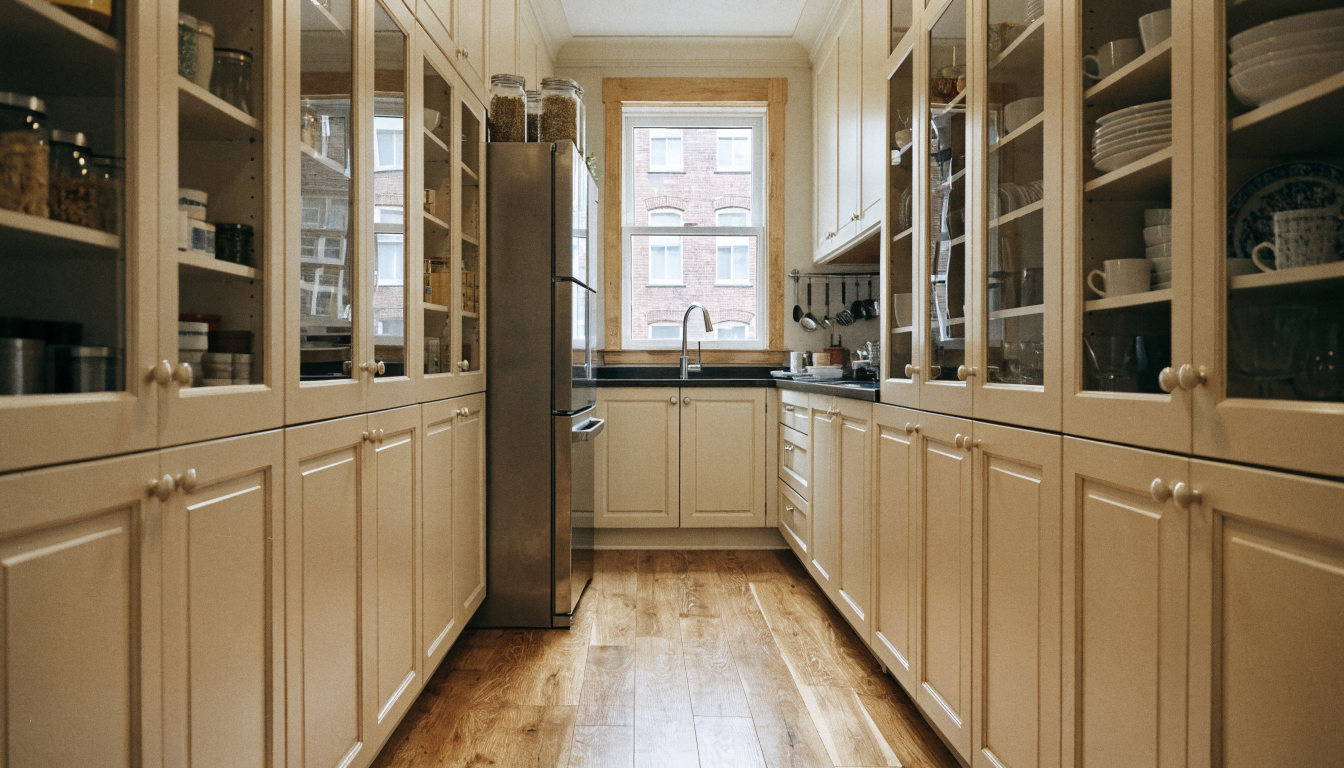

Small kitchen cabinet layout: where the extra inches come from

Small kitchens reward precision planning more than large ones because every centimetre of lost space shows. The rules for a small kitchen cabinet layout are not different from a large one, they are stricter: tighter tolerances, fewer fallbacks, and a harder limit on what you can squeeze into the triangle.

Three moves recover the most usable volume. First, take wall cabinets to the ceiling and add a narrow upper tier for rarely-used items. Second, swap base-cabinet doors for full-extension drawer stacks that pull contents forward instead of hiding them behind a hinge. Third, specify a tall pantry with internal pull-outs, trading a third of a metre of floor width for double the storage density. A session inside a virtual kitchen designer tool lets you test each move against your room before committing.

Clearances and dimensions most layouts get wrong

Building-code minimums are not the same as a comfortable working kitchen. The kitchen remodel planning workflow uses a stricter clearance set than generic floor-plan tools, because the gap between legal and usable is where small kitchens start to feel wrong.

Aisle clearance should be 1100 mm for a single-cook kitchen, 1200 to 1350 mm where two people pass. Counter landing zones need 400 mm on the handle side of the fridge, 300 mm next to a cooktop, and 600 mm on each side of the sink. Corner overlaps want a 90 mm filler at minimum, more if your handles project. Missing any of these produces a plan that technically fits but fights the cook every session.

Layout types at a glance

The table below summarises when each shape wins and the footprint it needs. The same comparison is live inside most planning tools, which is faster than redrawing by hand.

| Layout | Best for | Minimum floor | Work-triangle fit | Notable trade-off | |---|---|---|---|---| | Single-wall | Studios, narrow rooms | 2.4 x 2.1 m | Linear, not a true triangle | Storage is limited to one wall | | Galley | Rentals, efficient cooks | 2.4 x 3.0 m | Tight, fast triangle | Feels tight with two cooks | | L-shape | Open-plan homes | 3.0 x 3.6 m | Natural triangle | Corner cabinet specification matters | | U-shape | Serious cooks | 3.6 x 3.6 m | Largest prep runs | Feels enclosed if not well-lit | | Island-augmented | Social kitchens | 4.2 x 3.6 m | Flexible | Plumbing runs get expensive |

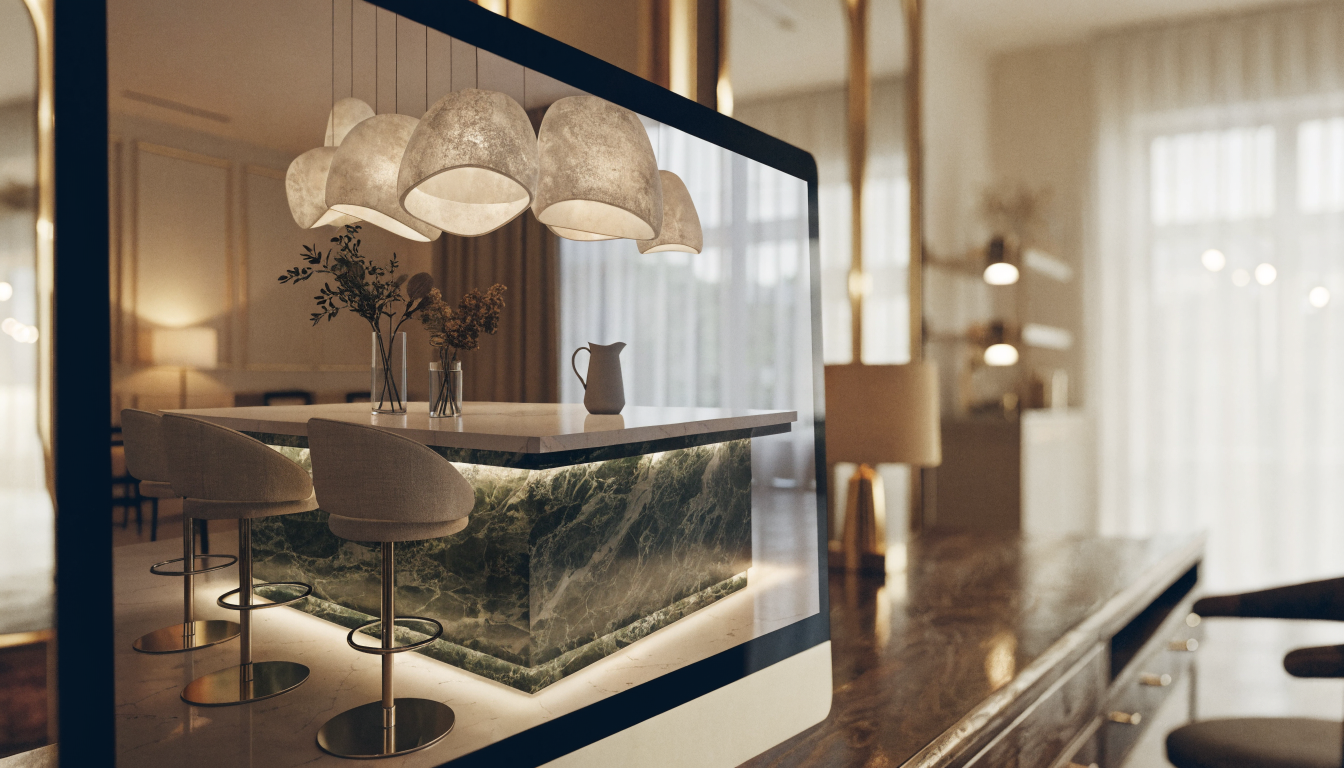

AI layout tools versus drafting on paper

Pencil-and-paper planning still works, and for a small kitchen where the owner knows the dimensions cold, it can be the fastest path to a working sketch. The limitation is iteration speed. Moving a 900 mm corner unit on paper means erasing adjacent runs, re-measuring the triangle by hand, and rechecking every clearance against a reference sheet.

AI tools compress that iteration loop. Modern cabinet planners read a brief (room size, preferred shape, rough budget, must-have appliances) and produce five to ten viable layouts, each with the triangle, clearances, and module snap points computed automatically. The value is the ability to compare ten side by side and identify which constraints are driving the outcome. Paper wins for a site-walk sketch; AI wins the moment you want to try three cooktop positions and see which breaks the fewest other rules.

A practical sequence for planning cabinet layout

The fastest path from empty room to a layout you can quote follows a fixed sequence. Skipping any step is usually the reason plans come back from the cabinetmaker with expensive changes.

1. Measure twice. Wall lengths, diagonals, ceiling height, door swings, window sills, power points, plumbing stacks. A 10 mm error across a 4 metre wall breaks a 900 mm corner cabinet.
2. Mark fixed constraints. Sink waste exit, gas line entry, structural walls. These dictate shape before you draw anything.
3. Pick the shape. Measurements against the table above. Rule out anything whose minimum footprint is larger than your room.
4. Place the triangle. Sink, cooktop, fridge first. Everything else builds around them.
5. Populate runs. Base, tall, wall, corner. Snap to real module widths. Check drawer versus door at every base unit.
6. Check clearances. Aisle width, landing zones, corner overlap, door swings. Fix clashes before rendering.
7. Render in 3D. Plan-view problems show up in elevation: wall cabinets that clip sight lines, rangehoods that hit window trim, pantries that box in a doorway.
8. Export a quotation pack. Plan, elevations, module schedule, appliance specification. This is what a cabinetmaker prices.

Frequently asked questions

What is the best kitchen cabinet layout for a small space?

Galley or single-wall, depending on room proportions. Galley suits rooms longer than 3 metres; single-wall suits rooms under 2.4 metres wide. Both rely on full-height wall cabinets and drawer stacks to recover storage a larger kitchen can afford to waste.

How do I apply the kitchen work triangle rule?

Draw a line between sink, cooktop, and refrigerator. The three sides should sum to between 4 and 7.9 metres, with no single side under 1.2 metres. Below that range feels cramped, above it the cook wastes steps. Most tools draw the triangle automatically.

What are the standard kitchen cabinet dimensions?

Base cabinets are 720 mm tall and 560 to 600 mm deep, widths 300 to 1200 mm in 50 or 100 mm steps. Wall cabinets are 720 to 900 mm tall and 300 to 350 mm deep. Tall cabinets run 2100 to 2400 mm. Counter finished height lands around 900 mm.

Should I use drawers or doors on base cabinets?

Drawers, in most cases. Full-extension stacks recover roughly 25 percent more usable volume than hinged doors with internal shelves, because you never reach past one item to access another. Reserve doors for under-sink units and very wide cabinets where drawers get expensive.

How much space do I need between kitchen counters?

Minimum 1100 mm for a single-cook kitchen, 1200 to 1350 mm where two people pass or one cook works while another accesses the fridge. Narrower than 1000 mm and opposing drawers or appliance doors will collide when open.

What is the most common mistake in kitchen cabinet layout?

Corner cabinets. The blind corner wastes interior volume unless you specify a diagonal unit, a bi-fold hinge, or a rotating carousel. Second-most common is under-specifying landing zones beside the cooktop and sink, which leaves the cook with nowhere to put a hot pan down.

Can I plan a kitchen layout without a designer?

Yes, for most straightforward rooms. An accurate site measure, a written brief, and a planner that snaps to real module sizes produces a quotable layout in an afternoon. Bring a professional in for structural changes or any job needing a permit.

How do AI kitchen layout tools compare to graph-paper planning?

Paper is faster for a single-pass sketch on site. AI tools win on iteration: producing ten variations, computing the triangle and clearances automatically, and rendering in 3D. Most people use a quick paper sketch for the brief, then AI for the variations they compare before quoting.

Where this lands

Cabinet layout is a planning problem, not a styling problem. Once the shape, triangle, modules, and clearances are right, almost any finish palette will work. The mistakes that survive into the finished kitchen are the ones baked into the plan: a corner that wastes volume, an aisle 100 mm too narrow, a pantry that blocks a sight line. Running the plan through the AI Renovation cabinet planner and stress-testing it in 3D before signing a cabinetmaker quote is the cheapest insurance against any of those surviving into the built kitchen.
